1201 Broadcast Series UHF Wireless Microphone Systems

DISCONTINUED

Azden 1201 Series UHF wireless microphone systems for broadcast, EFP and ENG applications.

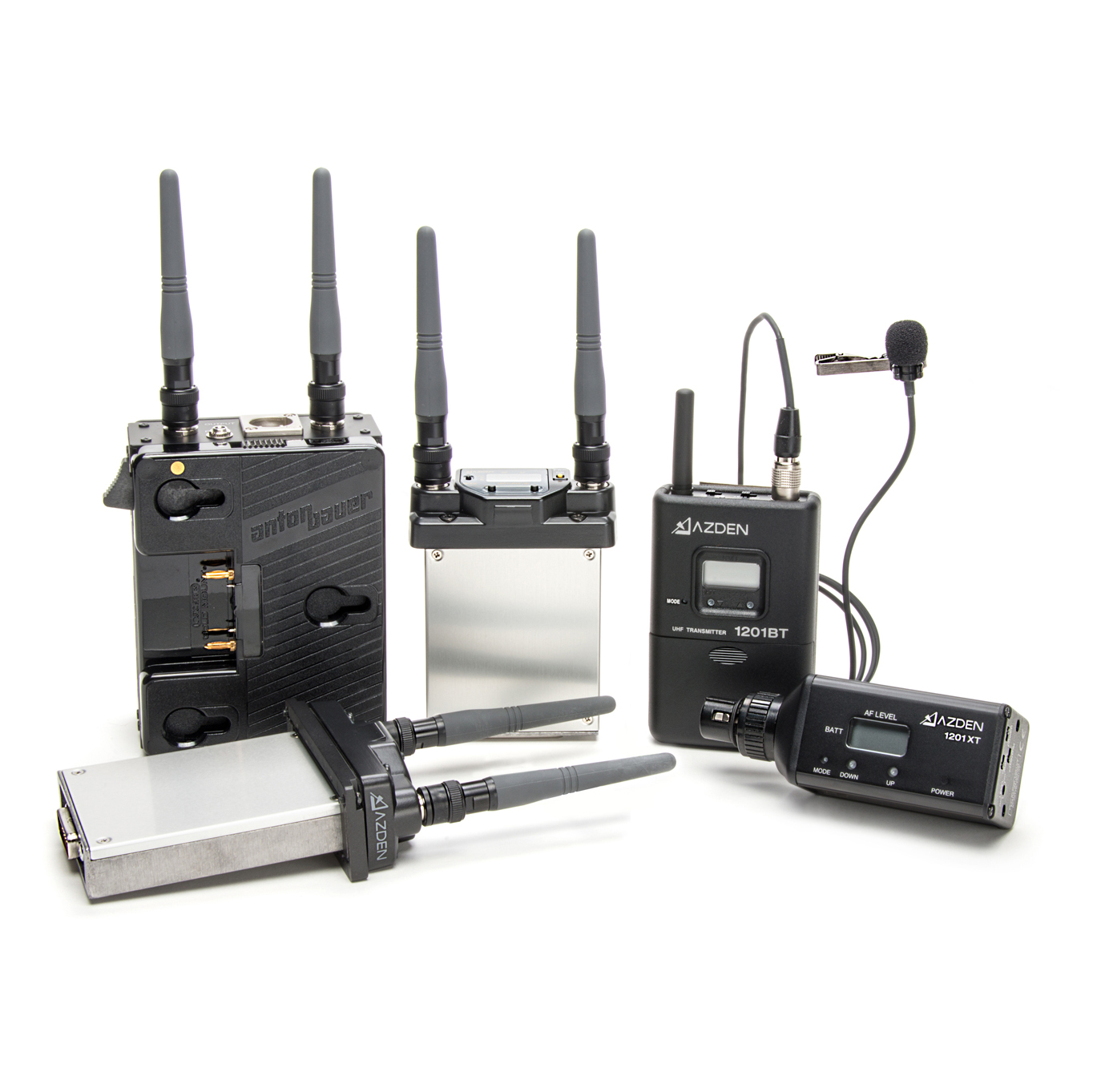

System components: 1201BT, 1201XT, 1201URX/Si, 1201URX/Si-S, 1201URX/AB, 1201URX/VT.

ADVISEMENT: These wireless systems are affected by the FCC’s latest frequency reallocations and will no longer be allowed for use in the U.S. as of July 13, 2020.

Category UHF Wireless Tags 1201 wireless, Closeout Deals, Wireless Handhelds, Wireless Lavaliers

Description

Per the FCC: Beginning in 2017, the amount of TV band spectrum available for wireless microphone use is decreasing as a result of the incentive auction, which was completed on April 13, 2017. A significant portion of the TV band spectrum in the 600 MHz band, including most (but not all) of the spectrum on TV channels 38-51 (614-698 MHz), has been repurposed for the new 600 MHz service band for use by wireless services, and will not continue to be available for wireless microphone use. Generally, wireless microphones that operate in the new 600 MHz service band will be required to cease operation no later than July 13, 2020, and may be required to cease operation sooner if they could cause interference to new wireless licensees.

Whether you use a Panasonic® or Ikegami® camera with “slot-in” receiver capabilities, or use the Anton-Bauer® Gold Mount®, or a V-Mount battery, there’s an Azden 1201 designed specifically for your use. The all new receivers and transmitters include:

New compander circuit for more natural sound
New DTV-compatible (188) frequencies covering 4 UHF TV bands
True diversity system with 2 complete front-ends and high-gain antennas
Dielectric filters throughout, for improved image rejection and superior diversity isolation
High 5th-order filters for improved S/N ratio
Multi-function LCD shows channel, frequency, battery info, AF level, and diversity operation

The slot-in design of the receivers and flexible feature set make the Azden 1201 Series a viable choice for broadcast, ENG, EFP, video & film shoots, etc.

1201URX/Si

- RF Carrier Frequency Range: 188 steps ~ 638.125 – 661.875 MHz
- Micro Computer Controlled PLL Synth.
- Noise Reduction: Expander (THAT)
- Effective Operating Range: 200 – 300 ft ~ 60 – 100m
- Frequency Response: 50 – 15kHz (± 1.5dB)
- RF Sensitivity: (12dB SINAD) 1.2μV
- Adjacent Channel Selectivity: > 70dB (± 250kHz)
- Image Rejection: > 93dB
- IF Rejection: > 93dB
- Audio THD: 62dB (± 5kHz Deviation) “A” Weighted
- Power Requirements: 11 – 15V DC @ 220mA (10 – 17V DC @ 200mA for 1201URXSi)
- Dimensions: 68W x 84H x 18D mm – 1201URX/Si
- Operating Temperature Range: -50 – +122 F ~ -10 – +50 C
- Weight: 8.8 ounces ~ 250g for 1201URX/Si

1201URX/AB

- RF Carrier Frequency Range: 188 steps ~ 638.125 – 661.875 MHz
- Micro Computer Controlled PLL Synth.
- Noise Reduction: Expander (THAT)
- Effective Operating Range: 200 – 300 ft ~ 60 – 100m
- Frequency Response: 50 – 15kHz (± 1.5dB)
- RF Sensitivity: (12dB SINAD) 1.2μV
- Adjacent Channel Selectivity: > 70dB (± 250kHz)
- Image Rejection: > 93dB
- IF Rejection: > 93dB
- Audio THD: 62dB (± 5kHz Deviation) “A” Weighted
- Power Requirements: 11 – 15V DC @ 220mA (10 – 17V DC @ 200mA for 1201URXSi)
- Dimensions: 93W x 119H x 49D mm – 1201URX/AB
- Operating Temperature Range: -50 – +122 F ~ -10 – +50 C
- Weight: 15.87ounces ~ 450g for 1201URX/AB

1201URX/VM

- RF Carrier Frequency Range: 188 steps ~ 638.125 – 661.875 MHz
- Micro Computer Controlled PLL Synth.
- Noise Reduction: Expander (THAT)
- Effective Operating Range: 200 – 300 ft ~ 60 – 100m
- Frequency Response: 50 – 15kHz (± 1.5dB)
- RF Sensitivity: (12dB SINAD) 1.2μV
- Adjacent Channel Selectivity: > 70dB (± 250kHz)
- Image Rejection: > 93dB
- IF Rejection: > 93dB
- Audio THD: 62dB (± 5kHz Deviation) “A” Weighted
- Power Requirements: 11 – 15V DC @ 220mA
- Dimensions: 82W x 150H x 60D mm – 1201URX/VM
- Operating Temperature Range: -50 – +122 F ~ -10 – +50 C
- Weight: 26.45ounces ~ 750g for 1201URX/VM

1201BT

- Output Power: 30mW
- Max Modulation Sensitivity: -4dBm
- MIC Level / Imped.: -56dBm / 2.2kΩ (± 5kHz Deviation)
- Power Requirements: 3V DC (2 “AA” Alkaline) @ less than 150mA
- Dimensions: 2.48 (W) x 3.86 (H) x 1.12 (D) inches
- 63 (W) x 98 (H) x 28.5 (D) mm
- Weight: w/Battery 6.35 ounces ~ 180g

1201XT

Transmission Frequencies: 188 User Selectable, UHF (638.125 – 661.875 MHz)
Output Power: 30mW
Max Modulation Sensitivity: +20dBM ~ 0dBm
MIC Level / Imped. (Dynamic): -60dBm / 2.2kΩ (± 5kHz Dev.)
Phantom Power: 48V ±2V @ 2mA
Power Requirements: 3V DC (2 “AA” Alkaline) @

Share your thoughts!

Let us know what you think...

Leave a Review

What others are saying

There are no contributions yet.

System Configurations

	1201SiT 1201URX/Si slot-in receiver with 1201BT transmitter and EX-503H lavalier microphone. (Specify Panasonic or Sony type slot-in.)
	1201SiS 1201URX/Si slot-in receiver with 1201BT transmitter and ECM-44H lavalier microphone. (No Longer Available)
	1201SiX 1201URX/Si slot-in receiver with 1201XT XLR plug-in transmitter. (Specify Panasonic or Sony type slot-in.)
	1201ABT 1201URX/AB Anton Bauer® Gold Mount® receiver with 1201BT transmitter and EX-503H lavalier microphone
	1201ABS 1201URX/AB Anton Bauer® Gold Mount® receiver with 1201BT transmitter and ECM-44H lavalier microphone.
	1201ABX 1201URX/AB Anton Bauer® Gold Mount® receiver with 1201XT XLR plug-in transmitter.
	1201VMT 1201URX/VM V-Mount receiver with 1201BT transmitter and EX-503H lavalier microphone.
	1201VMS 1201URX/VM V-Mount receiver with 1201BT transmitter and ECM-44H lavalier microphone.
	1201VMX 1201URX/VM V-Mount receiver with 1201XT XLR plug-in transmitter.
