310XT UHF Diversity Wireless Microphone System

(2 customer reviews)

DISCONTINUED

DISCONTINUED

Professional UHF diversity wireless microphone system with XLR plug-in transmitter and camera mount receiver.

Features

  • 188 Selectable UHF Frequencies
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multifunction Readout
  • 35XT plug-in transmitter
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries (not included)
  • 2 year warranty

Description

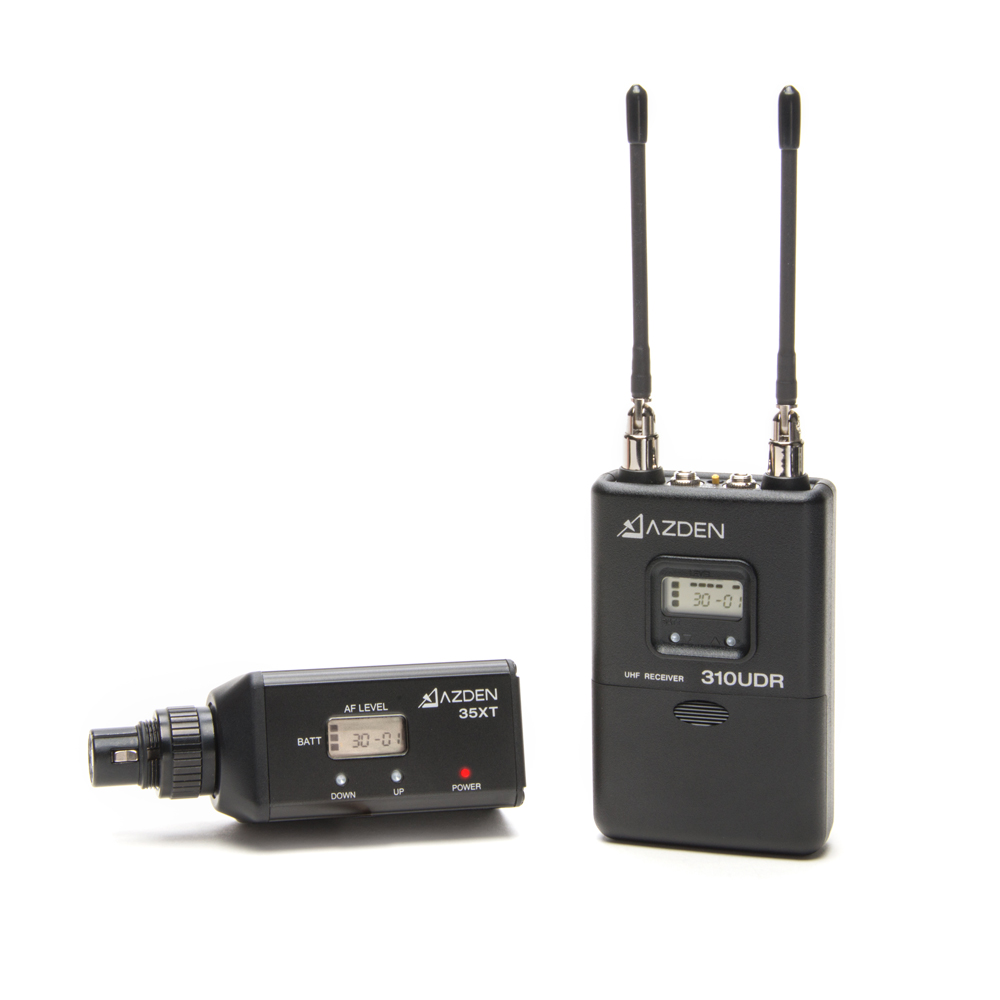

The Azden 310XT is a powerful yet affordable UHF wireless combo-microphone system for camera-mount applications. The system consists of Azden’s 35XT plug-in XLR transmitter, which can be plugged into any XLR microphone, and 310UDR camera-mount diversity receiver. With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310XT is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 310UDR receiver
  • Shoe mount
  • Mounting strips
  • MX-1 XLR output cable
  • 3.5mm mini-jack output cable
  • 35XT plug-in transmitter
  • Manual
  • Hard shell carrying case

Share your thoughts!

5 out of 5 stars

2 reviews

Let us know what you think...

What others are saying

  1. Mike Winners

    310XT UHF Diversity Wireless Microphone System

    Mike Winners (verified owner)

    Works as advertised. I do not normally review products I buy unless I am unhappy with it.
    I do not appreciate getting 10 EMails every day forcing me to review the product. I like Azden equipment!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Store Manager

      Admin Store Manager

      Glad to hear you like the product. You should have just gotten 1 email after your purchase asking for a review. If it really is 10 emails a day that is a problem and we will fix it!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×

Login

Continue as a Guest

310UDR Receiver

  • Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB 100% Dev.
  • Output Impedance: 1k Ohms
  • Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
  • -28 dBm – 100% deviation
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
  • Weight: Approx. 6.7oz (190g) w/batteries

35XT Transmitter

  • Freq. Range UHF: 188 Selectable (566.125-589.875MHz)
  • Antenna Internal
  • Connector: Female 3-pin XLR
  • Max. Input level: -16dBm
  • RF Power: 25mW
  • Input Impedance: 25k ohms
  • Audio Adjust. Range: -65dBm to 46dBm
  • Battery: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimensions: 1.57″W x 1.57″H x 4.49″L (40 x 40 x 114 mm)
