330LH Dual Channel UHF Wireless Microphone System Combo

330LH Dual Channel UHF Wireless Microphone System Combo

Discontinued

DISCONTINUED

Features

  • 188 Selectable UHF Frequencies
  • Wireless lavalier and handheld transmitter combo
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multi-function Readout
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” batteries
  • 2 year warranty
SKU 330LH Category Tags , , , , ,

Description

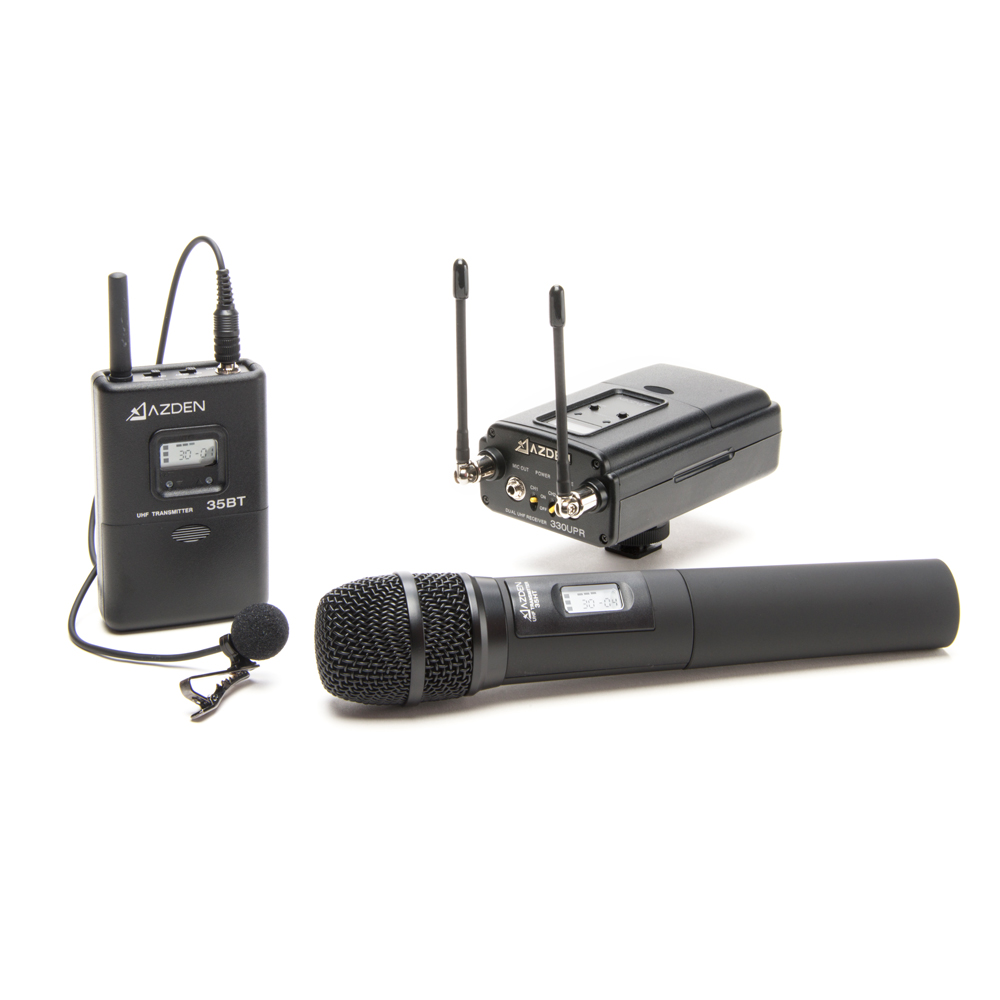

The Azden 330LH UHF dual wireless system is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of an Azden 35BT body-pack transmitters, EX-503L lavalier microphone, 35HT handheld microphone/transmitter and the 330UPR portable dual-channel receiver. The inclusion of both the body-pack and handheld transmitters allows users to the flexibility to use the right microphones for the right job.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LH is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 330UPR receiver
  • Shoe mount
  • Mounting strips
  • MX-2 dual XLR output cable
  • 3.5mm stereo output cable
  • 35BT body-pack transmitters
  • EX-503L omni-directional lapel microphones
  • 35HT handheld transmitter
  • Manual
  • Hard shell carrying case

330UPR Receiver

  • Frequency Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB (100% Deviation)
  • Audio Out: MIC Level – Unbalanced – 3.5mm Mini-Jack
  • -28 dBm (100% Deviation – Mic Level)
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.87″W x 4.45″H x 1.59″D (73 x 113 x 40.5 mm)
  • Weight Approx.: 10.2 oz (290g) w/batteries

35BT Transmitter

  • Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
  • Weight: Approx. 6oz (170g) w/batteries

35HT

  • Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max Deviation: ± 40kHz @ 1kHz Modulation, MIC input – 65dBm (dev ± 5kHz)
  • Mic Element: Cardioid Electret Condensor
  • Batteries: 2 “AA” Alkaline (2 x 1.5V), 6-8 hours runtime
  • 2 “AA” Rechargeable Ni-MH (2 x 1.2V)
  • Dimensions: ɸ1 7/8” x 9 9/16”L (48 x 234.5mm)
  • Weight: Approx. 9.6oz (270g) w/ batteries
