330LX Dual Channel UHF Wireless Microphone System Combo

Discontinued

DISCONTINUED

Features

  • 188 Selectable UHF Frequencies
  • Wireless lavalier and plug-in transmitter combo
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multi-function Readout
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” batteries
  • 2 year warranty
SKU 330LX Category Tags , , , , ,

Description

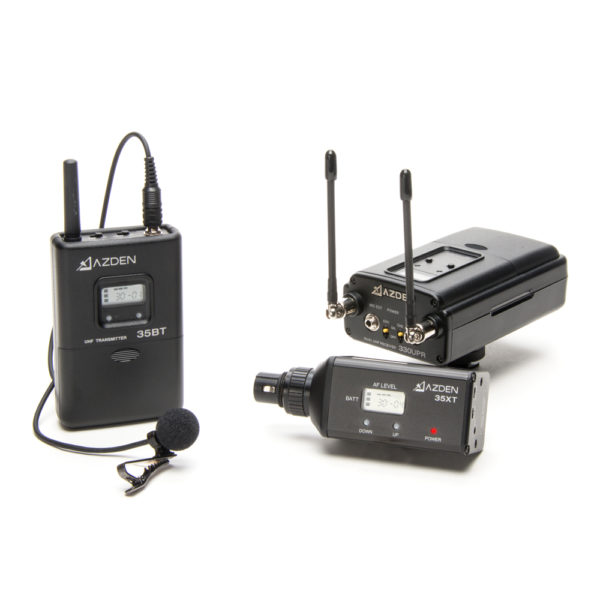

The Azden 330LX UHF dual wireless system is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of an Azden 35BT body-pack transmitters, EX-503L lavalier microphone, 35XT plug-in transmitter and the 330UPR portable dual-channel receiver. The inclusion of both the body-pack and plug-in transmitters allows users to the flexibility to use the right microphones for the right job.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LX is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 330UPR receiver
  • Shoe mount
  • Mounting strips
  • MX-2 dual XLR output cable
  • 3.5mm stereo output cable
  • 35BT body-pack transmitters
  • EX-503L omni-directional lapel microphones
  • 35XT plug-in transmitter
  • Manual
  • Hard shell carrying case

330UPR Receiver

  • Frequency Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB (100% Deviation)
  • Audio Out: MIC Level – Unbalanced – 3.5mm Mini-Jack
  • -28 dBm (100% Deviation – Mic Level)
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.87″W x 4.45″H x 1.59″D (73 x 113 x 40.5 mm)
  • Weight Approx.: 10.2 oz (290g) w/batteries

35BT Transmitter

  • Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
  • Weight: Approx. 6oz (170g) w/batteries

35XT

  • Freq. Range UHF: 188 Selectable (566.125-589.875MHz)
  • Antenna Internal
  • Locking female 3-pin XLR
  • Max. Input level: -16dBm
  • RF Power: 25mW
  • Input Impedance: 25k ohms
  • Audio Adjust. Range: -65dBm to 46dBm
  • Battery: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimensions: 1.57″W x 1.57″H x 4.49″L (40 x 40 x 114 mm)
  • Weight: Approx. 6.35oz (180g) w/battery
