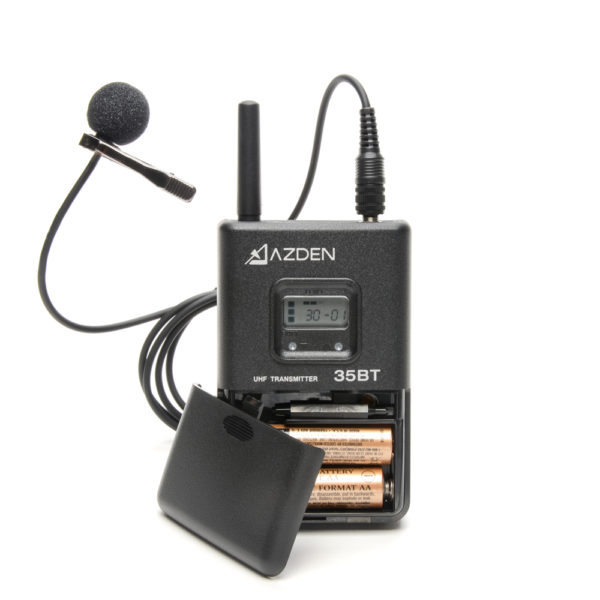

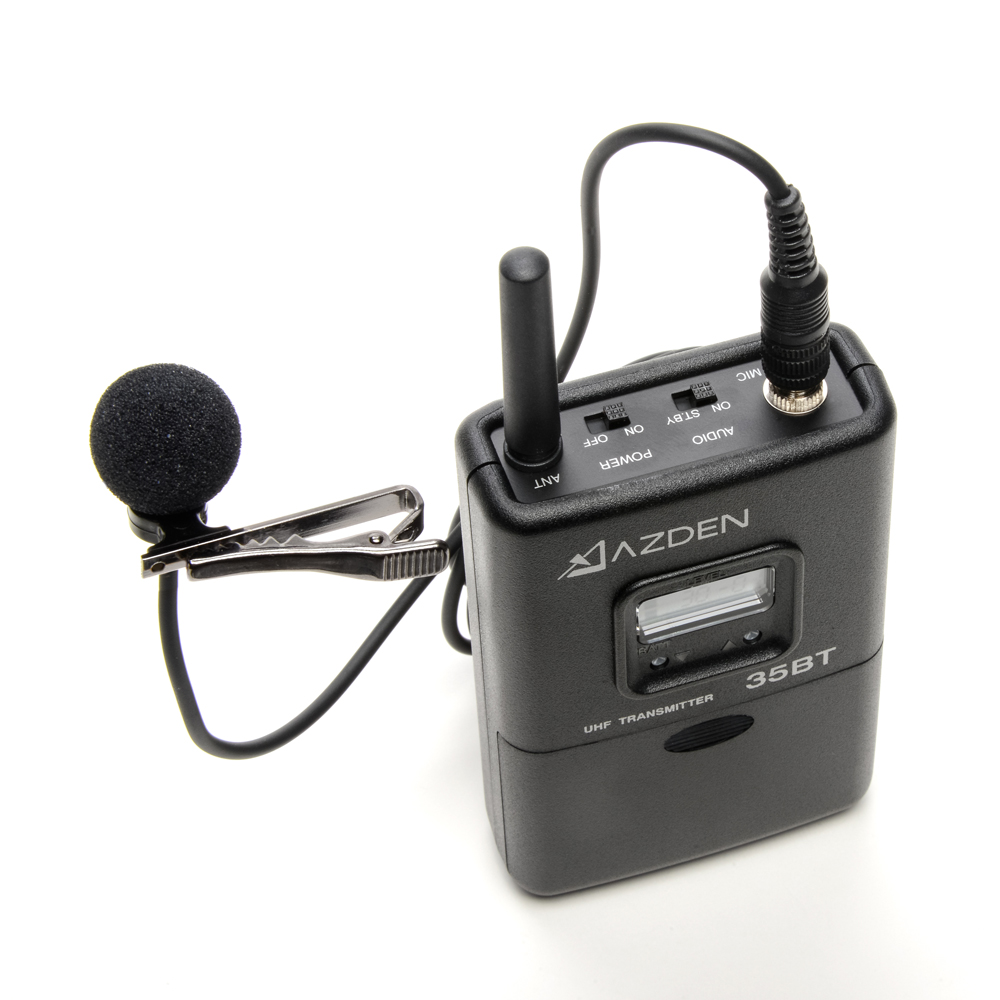

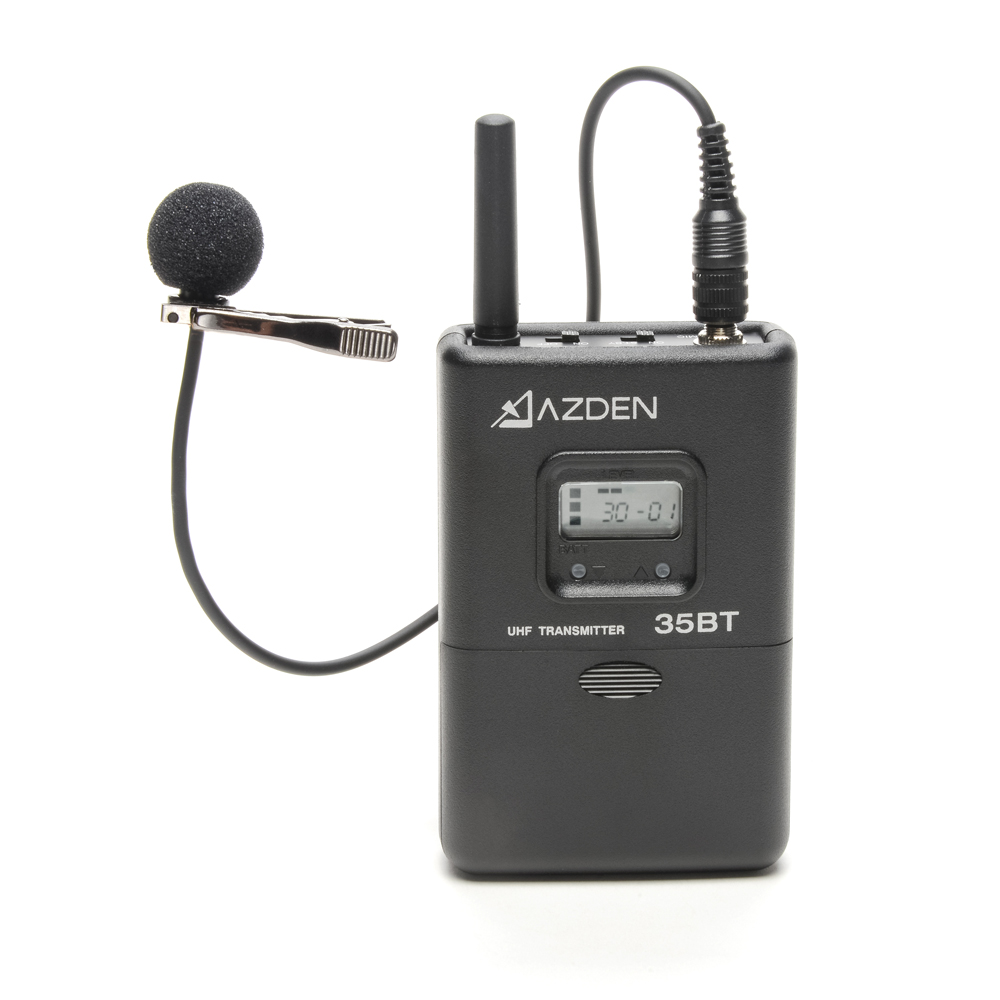

35BT Belt-Pack Transmitter with Lavalier Mic

Discontinued

DISCONTINUED

UHF body-pack transmitter and lavalier microphone. Works with 310UDR and 330UPR receivers.

Features

188 Selectable UHF Frequencies
Digital LCD Display w/ Multi-function Readout
Powered by 2 “AA” Batteries (not included)
Power on/off and audio standby switches
Included lavalier mic
Internal microphone level adjustment
Durable metal belt-clip
2 year warranty

Description

Azden’s 300 Series are high quality dual and single channel UHF camera-mount wireless systems that feature 188 user-selectable frequencies displayed on an LCD screen to assure you of always finding a “free” channel.

The 35BT is the standard body-pack transmitter for 300 Series systems, and will work with the 310UDR and 330UPR receivers. It operates on 2 AA batteries and comes with the EX-503L omni-directional lavalier microphone.

Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
Oscillator: PLL Synthesized
RF Power: 25mW
Frequency Response: 50Hz – 15kHz
Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
Weight: Approx. 6oz (170g) w/batteries
