WDM-PRO Dual Channel VHF Wireless Microphone Combo

$439.00

DISCONTINUED

PRO Series 2 channel VHF wireless microphone system with 1 lavalier, 1 handheld microphone and 2 channel camera mount receiver.

Features

  • 2-Channel VHF wireless system
  • Versatility of handheld and lavalier mic
  • Use 2 microphones simultaneously
  • Removable Shoe Mount for WR32-PRO Receiver
  • Includes DSLR/Video Camera Stereo Output Cable
  • Operates in the low-interference VHF band
SKU WDM-PRO Category Tags , , ,

Description

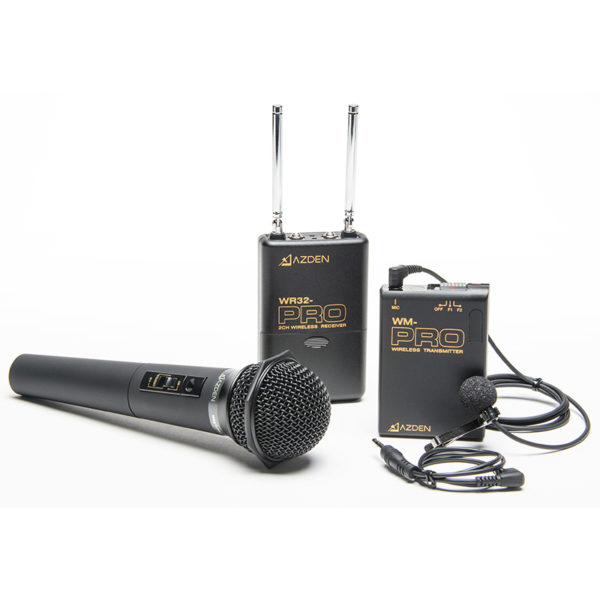

The WDM-PRO VHF Wireless System pairs the new AZDEN WR32-PRO Dual-Channel Receiver with a single WM-PRO belt pack transmitter, including the EX-503 lavalier microphone and a WM/T-PRO wireless handheld microphone. This kit is geared towards the DSLR user who wants the versatility of the lavalier microphone and the classic feel of a handheld microphone at the same time. Ideal applications for this kit include entry-level news gathering, interviews and web videos.

In The Box

  • WR32-PRO 2 Channel VHF Receiver
  • WM-PRO VHF Body-pack Transmitter
  • WM/T-PRO VHF Handheld Mic/Transmitter
  • EX-503 Omni Lavalier Microphone
  • Lapel Clip
  • 3.5 mm Stereo Mini Output Cable
  • Shoe Mount
  • Hook & Loop Mounting Tape
  • Manual

Share your thoughts!

Let us know what you think...

Leave a Review

What others are saying

There are no contributions yet.

×

Login

Continue as a Guest

Continue as a Guest

WL/T-PRO

  • TRANSMISSION FREQ: F1: 169.445MHz; F2: 170.245MHz
  • MIC UNIT: Omni-Directional Electret -Condensor
  • BATTERY: 9V x 1 (not included)
  • POWER CONSUMPTION: 30mA
  • BATTERY LIFE: 8 to 10 Hours
  • DIMENSIONS: 86 x 60 x 21.5 (mm)
  • WEIGHT (W/ BATTERY): 98g (3.5oz)



WM/T-PRO

  • TRANSMISSION FREQUENCY: F1: 169.445MHz; F2: 170.245MHz
  • ANTENNA: Internal Antenna
  • MIC UNIT: Uni Dynamic
  • BATTERY: 1.5V (AA) x 1 (not included)
  • POWER CONSUMPTION: 100mA
  • RF OUTPUT: 10mW
  • IMPEDANCE: 8 k ohms
  • BATTERY LIFE: 8 to 10 Hours
  • DIMENSIONS: 62mm (Ø) x 211 mm – (2.4″ x 8.3″)
  • WEIGHT (including battery): 170g (6.0 oz)



WR32-PRO

  • RECEPTION FREQUENCY: F1: 169.445 MHz; F2: 170.245 MHz
  • DOUBLE SUPERHETERRODYNE SYSTEM
  • RECEPTION SENSITIVITY: 2μV at S/N 40dB
  • BATTERY: 1.5V AA x 2 (not included)
  • POWER CONSUMPTION: 100mA
  • MONITOR OUTPUT: Voltage: 0.7V (Load: 30Ω, Modfreq: 1kHz, Dev: ±7kHz)
  • MICROPHONE OUTPUT: 25mV – (Load: 10kΩ, Modfreq: 1kHz, Dev: ±7kHz; Impedance: 300Ω)
  • DIMENSIONS: 63(h) X 98(w) X 28.5(d)mm – (2.5” x 3.9” x 1.1”)
  • WEIGHT (including battery): 171g (6 oz)
