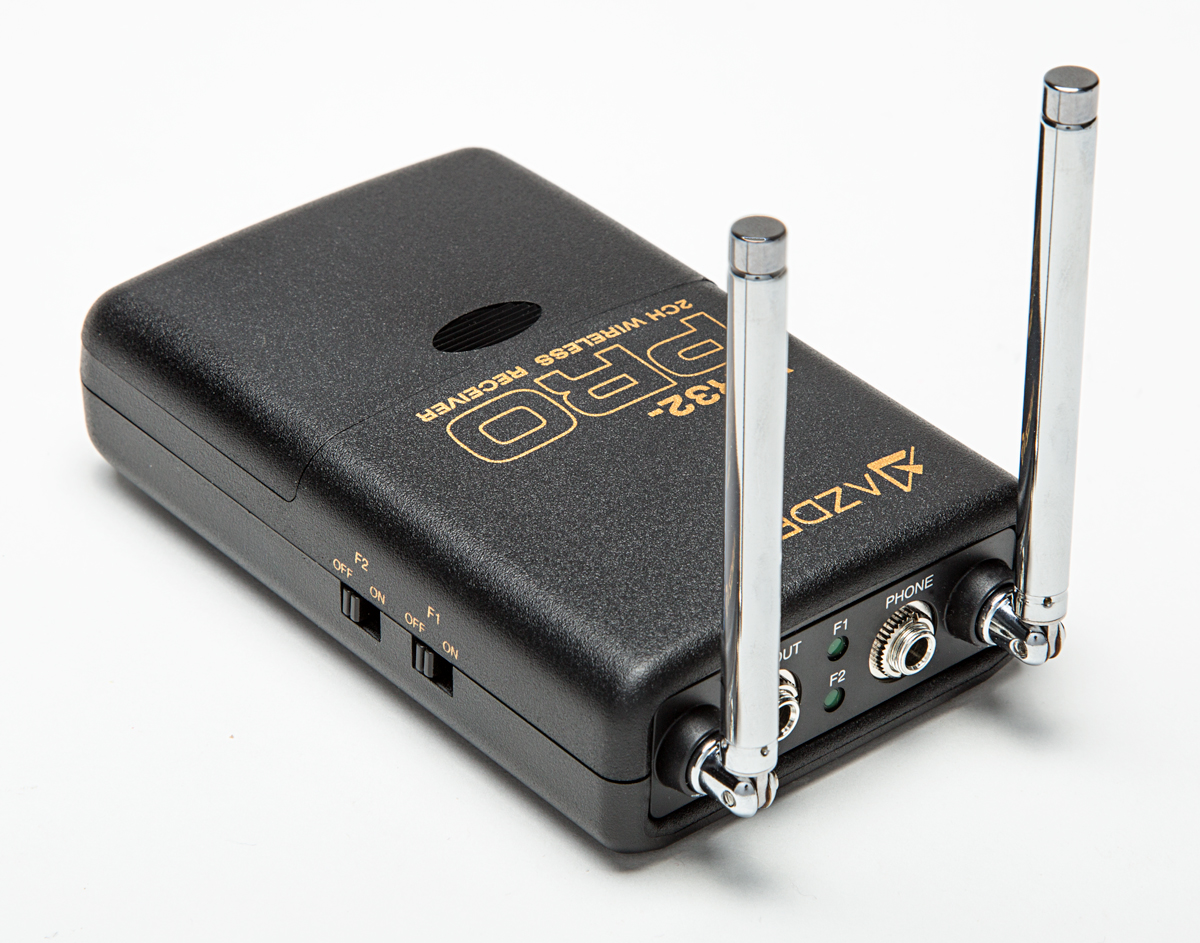

WR32-PRO – PRO Series Receiver

Discontinued

DISCONTINUED

Dual-Channel PRO Series Wireless Receiver. Works with all PRO Series wireless transmitters.

Features

  • Use 2 PRO Series transmitters simultaneously!
  • Works seamlessly with your DSLR camera
  • Simple, user friendly design
  • Separate power switches with status LED indicators for channels 1 & 2
  • High gain telescopic antennas
  • Monitor (headphone) output jack
  • Comes with shoe mount & mounting strip
  • 2 year warranty

Description

The all-new WR32-PRO is an affordable, high-quality dual-channel VHF receiver specifically geared towards DSLR or video camera users. It allows you to record audio from two wireless microphones at the same time. The WR32-PRO works with any combination of two WM-PRO body pack transmitters and/or WM/T-PRO handheld microphone transmitters. The unit operates on the VHF wireless band of 169.445MHz (F1) and 170.245MHz (F2) and it can easily be attached to most cameras with the supplied shoe mount or locking adhesive strips. AZDEN also gives the user the options of purchasing the new WR32-PRO receiver by itself, or as part of a wireless kit. The two (2) kits AZDEN offers will cater to the specific needs of the DSLR user. Whether you prefer the body pack transmitters with lavalier microphones, or wireless handheld microphones, AZDEN has the solution for you.

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.

×

Login

Continue as a Guest

  • RECEPTION FREQUENCY: F1: 169.445 MHz; F2: 170.245 MHz
  • DOUBLE SUPERHETERRODYNE SYSTEM
  • RECEPTION SENSITIVITY: 2μV at S/N 40dB
  • BATTERY: 1.5V AA x 2 (not included)
  • POWER CONSUMPTION: 100mA
  • MONITOR OUTPUT: Voltage: 0.7V (Load: 30Ω, Modfreq: 1kHz, Dev: ±7kHz)
  • MICROPHONE OUTPUT: 25mV; (Load: 10kΩ, Modfreq: 1kHz, Dev: ±7kHz; Impedance: 300Ω)
  • DIMENSIONS: 63(h) X 98(w) X 28.5(d)mm – (2.5” x 3.9” x 1.1”)
  • WEIGHT (including battery): 171g (6 oz)
